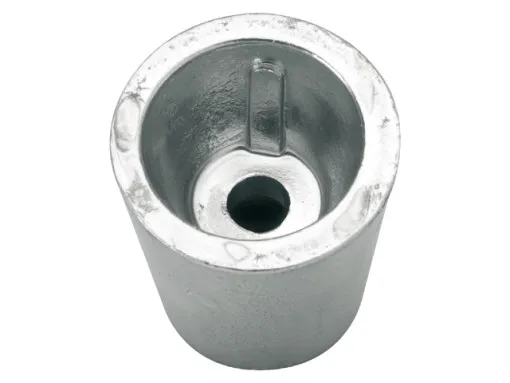

Talamex, conical corrugated anode with groove, zinc

The Talamex zinc conical shaft anode with feather key for mounting on the shaft end protects the metal parts of the underwater hull from electrochemical corrosion. This sacrificial anode is mounted on the conical end of the drive shaft with the aid of an Allen screw; the moulded feather key prevents twisting. The less noble zinc sacrifices itself for the more noble metals such as the ship's propeller, propeller shaft or sea valves and thus protects them from pitting. As a rule, the anode must be replaced annually during winter storage, or twice a year in the case of very severe degradation.

• Material: Zinc
• Sizes

Shaft Ø Outer Ø Length Weight
25mm 32mm 39mm 0.20kg
30mm 44mm 52mm 0.30kg
35mm 44mm 52mm 0,40kg
40mm 49mm 65mm 0,50kg
45mm 59mm 73mm 0.60kg
