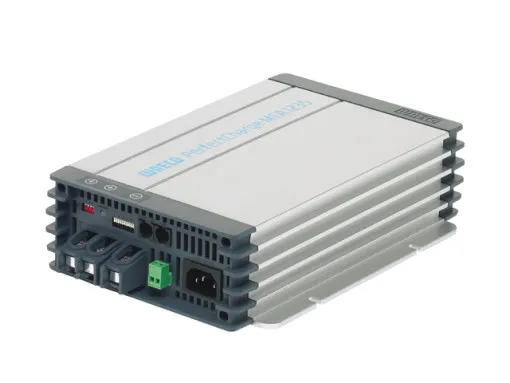

Dometic, Perfect Charge MCA 1235 35A charger

The Dometic Perfect Charge MCA 1235 charger is a 6-stage IU0U automatic charger with 35 A charging current. The MCA 1235 is designed for charging 2 battery banks + 1 starter battery, the 6-stage IU0U characteristic curve is optimised for charging and maintaining wet, gel and fleece batteries (AGM batteries). Perfect Charge chargers have a compact design and low weight and are therefore perfect for the on-board power supply on yachts. We recommend using the optional MCA-TS1 temperature sensor to extend the service life of your battery.

Technical data:
Charging outputs: 2 + 1
Input voltage range: 90 - 260 Volt AC / 50 - 60 Hz
Final charging voltage: 14.4 - 14.7 volts DC
Trickle charge voltage: 13.8 volts DC
Recommended total battery capacity: 100 - 400 Ah
U0 phase limitation: 8 h or 16 h
Efficiency: up to 92%
Max. Charging current: 35 A
Operating temperature: -20 °C to +50 °C
System: 6-stage charging characteristic, overload/short-circuit protection, sleep mode via remote control or DIP switch on the device, bus interface, protection class equivalent to IP 21
Dimensions (WxHxD): 179 x 63 x 274 mm
Weight: approx. 1.9 kg
Test mark: e-certified (EMC/vehicle directives)
Accessories: MCA-RC1 remote control, PerfectControl MPC 01,
Intelligent battery management system, Hella sensor MCA-HS1 battery sensor, temperature sensor MCA-TS
