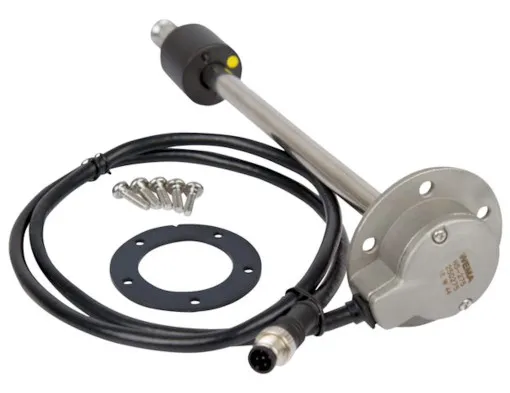

Wema, tank sensor water and fuel N5 NMEA 2000, SAE-5 flange

The Wema N5 NMEA-2000 tank sensor with SAE-5 flange is a reliable and maintenance-free tank sensor with a plug-and-play NMEA 2000 connection. The signal from the sensor can be fed directly into NMEA-2000 devices or the Wema NMEA displays. This sensor can be mounted directly on the tank or via a Wema SAE-5 flange and is suitable for fuel, water, oils and many other clean liquids. Technical details:

• Material: AIS 316 stainless steel
• Output: NMEA2000
• Cable and connector: 990 mm +/-30 mm with NMEA2000 micro connector
• Operating temperature: -40°C to +85°C
• Power supply: 12 V
• Mounting: Flange with standard SAE 5-hole drilling pattern
• Protection class: IP65
• ISO8846 certified
• Outer diameter of the sensor head: 69 mm
• Height of the sensor head above the tank: 23 mm
• Lengths: 15cm - 120cm
